Locks and pivots.

We fit the hardware you choose and test it in our workshop before the door is crated. These are the brands we fit. Specifications, where shown, are the manufacturers' own.

FritsJurgens pivot hinges.

The hinge sits hidden in the floor and the head of the frame, so a heavy door turns lightly. FritsJurgens was founded in the Netherlands. We fit the system that matches your door's weight and how you want it to swing.

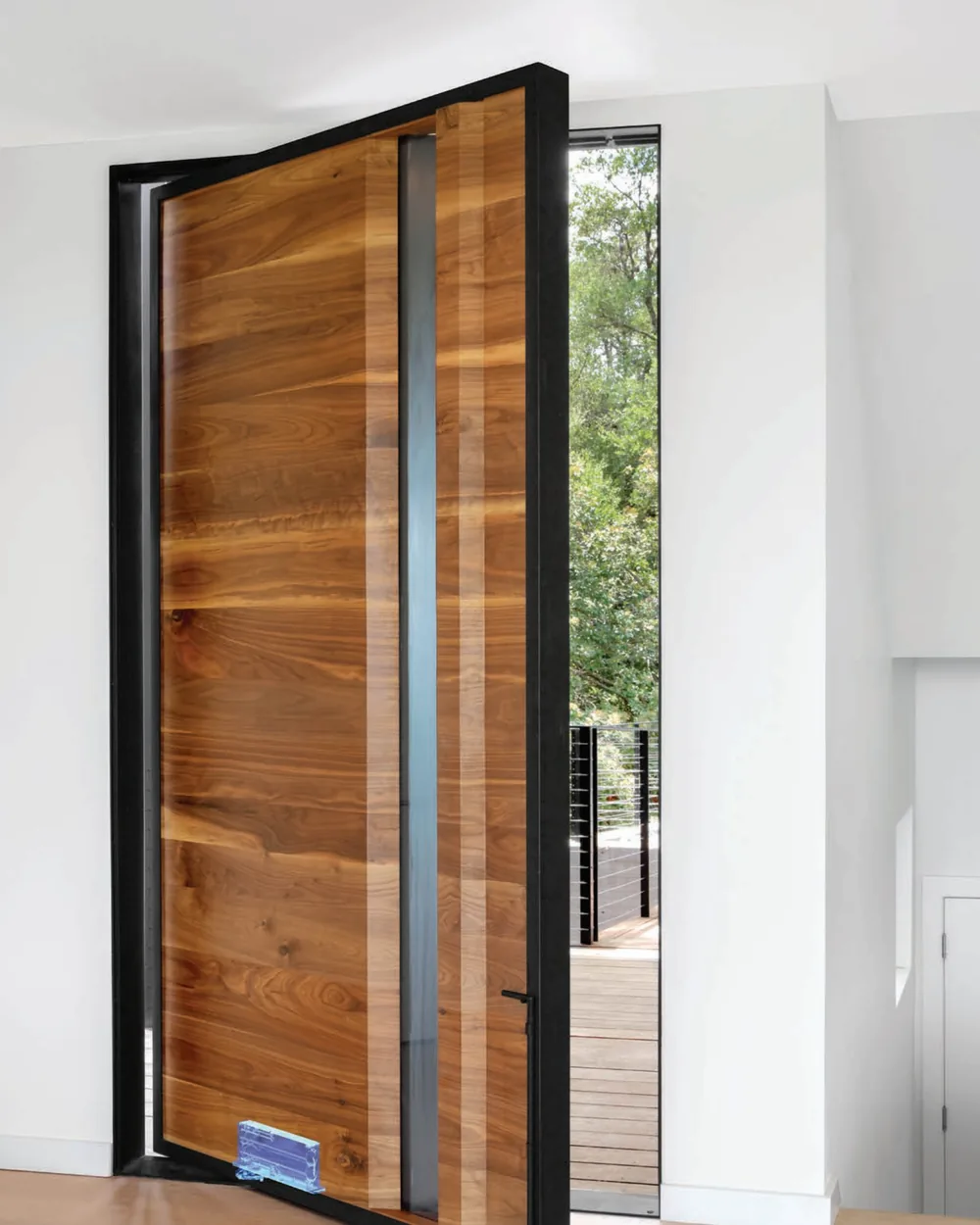

Walnut pivot door on a FritsJurgens System M+ hinge, with the concealed hinge shown in blue
System M+ on a walnut pivot door. Photo: FritsJurgens. Design: Brian Chilton Design.

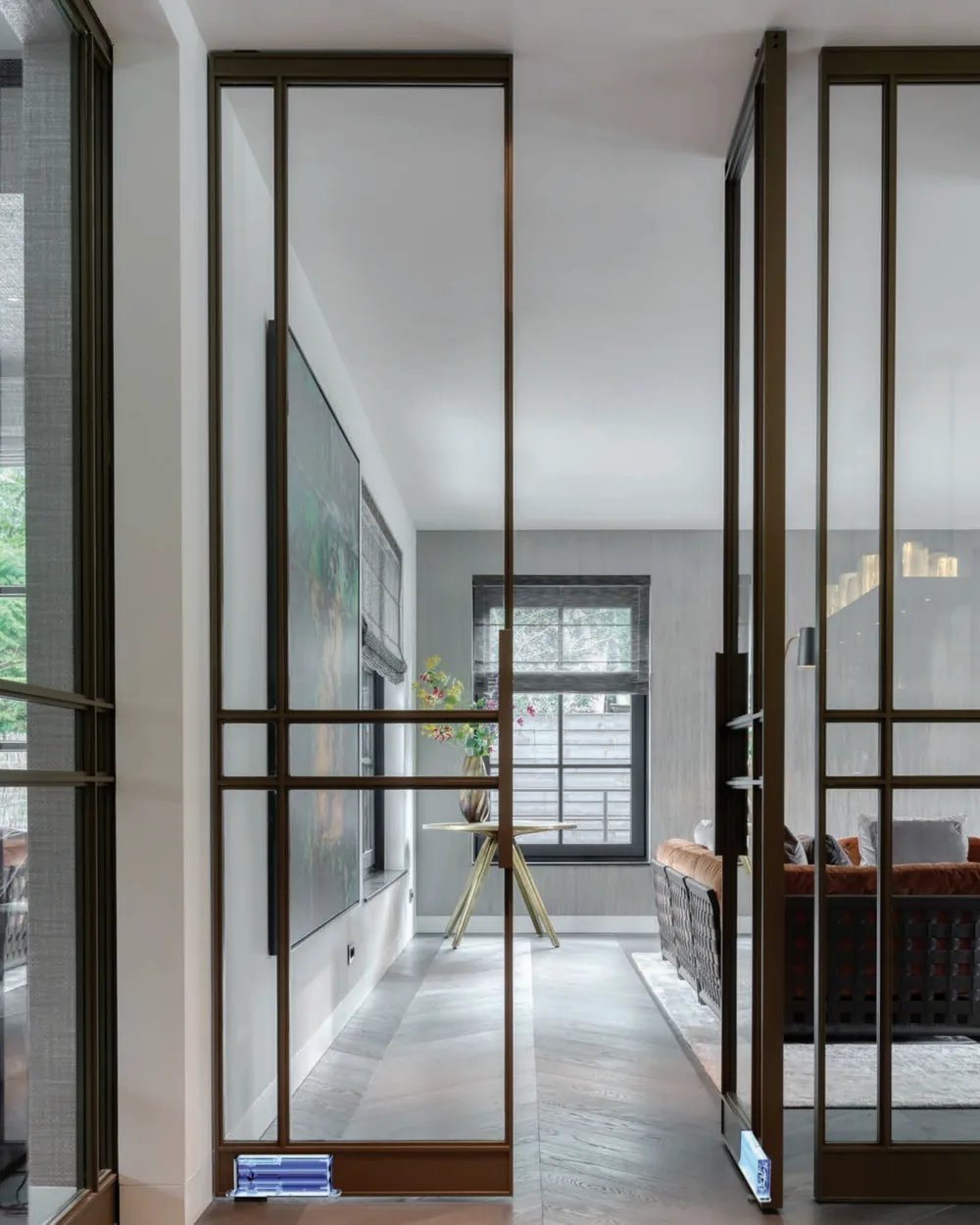

Steel and glass pivot doors on FritsJurgens hinges, with the concealed hinges shown in blue
Steel and glass pivot doors. Photo: FritsJurgens, by Jurrit van der Waal. Made by Laska Metaal, designed by Herman Peters.
*Depending on door width. Figures from the FritsJurgens catalogue, 2022.
FeatureSystem M+System MSystem 3System One
Door weight*20–500 kg20–209 kg20–350 kg0–500 kg
Swing180° double acting or 90° single acting180° double acting or 90° single acting360°360° double acting or 90° single acting
Holds open at90°, −90° and 0°90°, −90° and 0°0°, 90°, 180° and 270°Free swing, no hold
Closes by itselfFrom up to 125°From up to 125°Turns to the next stop from 45°No
DampedYesYes––
Closing speed adjustable from 30°YesNo––
LatchingYesNo––
Pivot size294.8 × 32 × 99.6 mm (M32+), 308.2 × 42 × 112.7 mm (M42+)294.8 × 32 × 99.6 mm160 × 32 × 143 mm160 × 32 × 39 mm
Show locks that open byOpens by

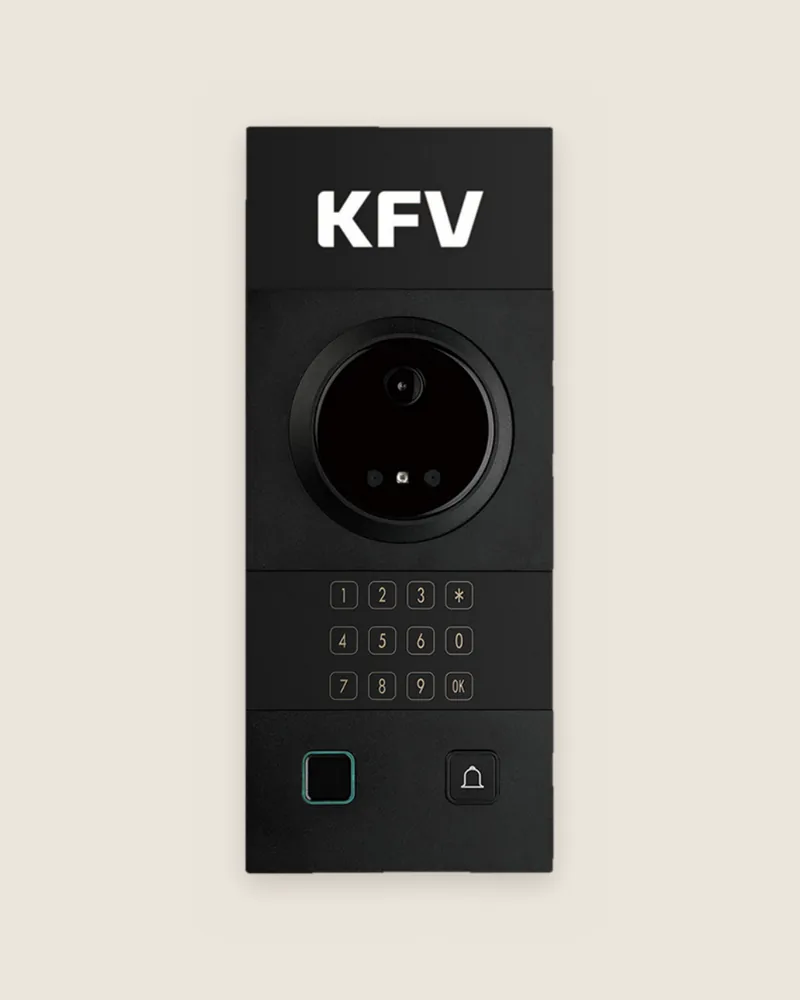

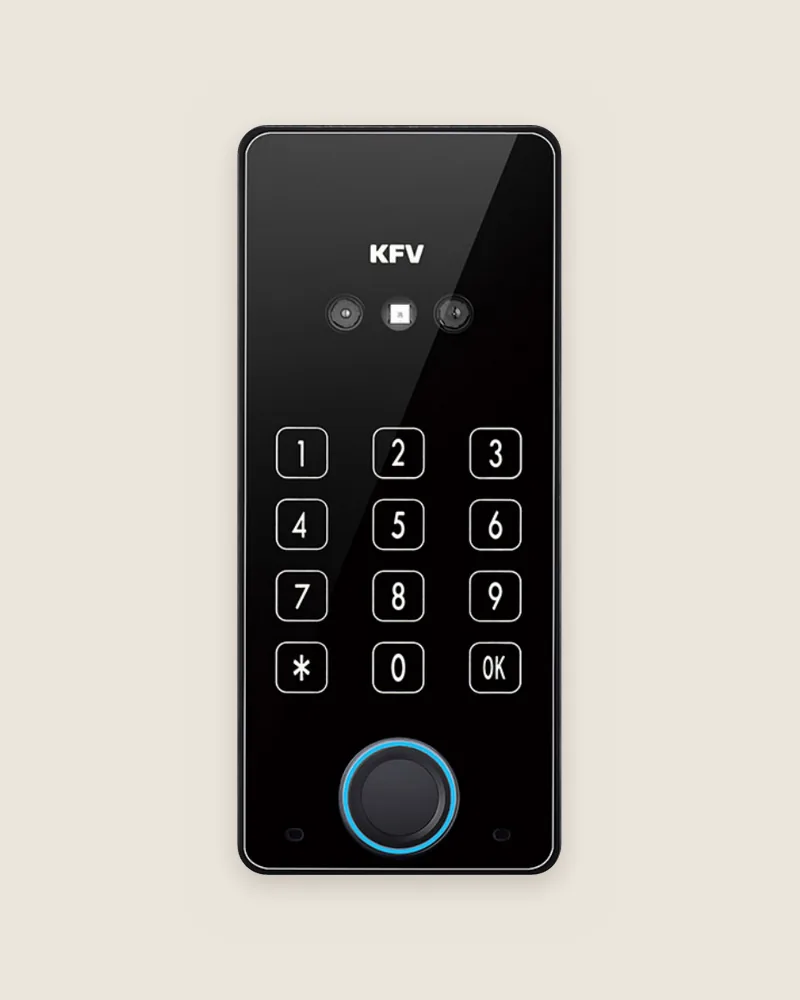

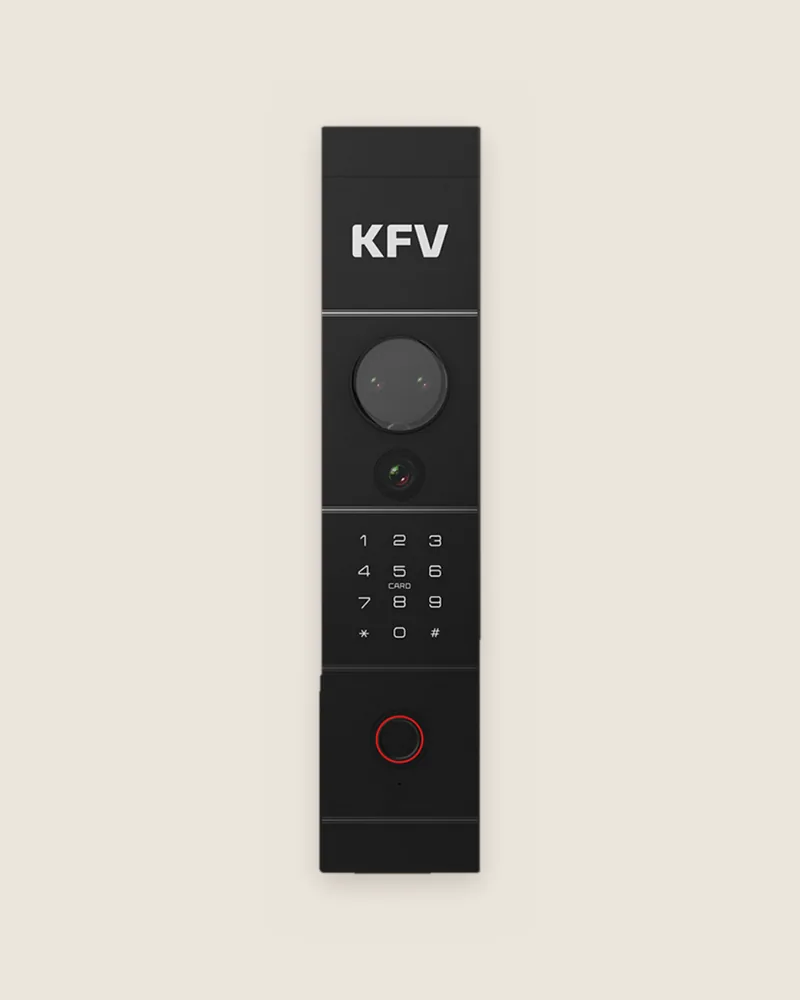

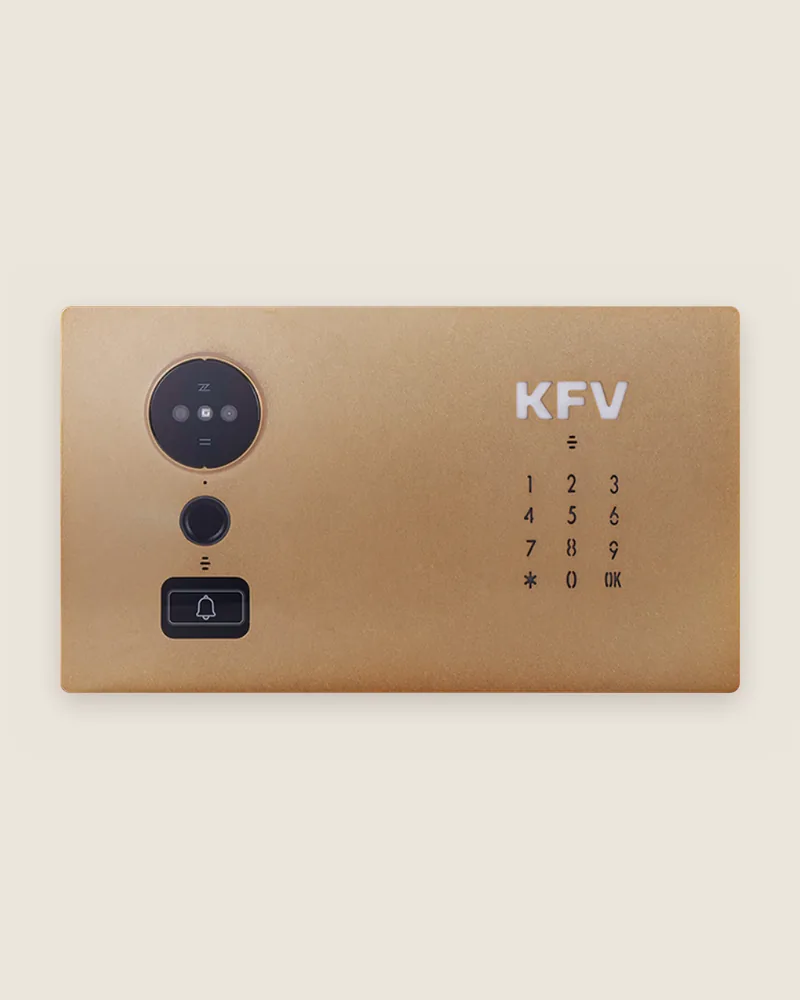

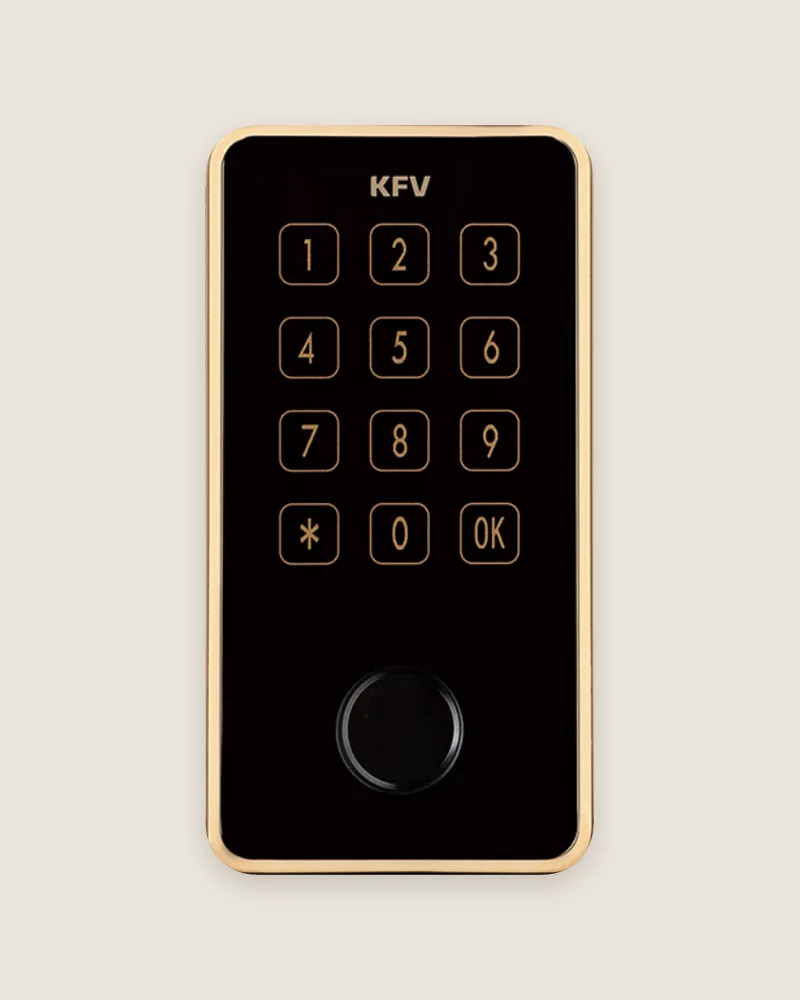

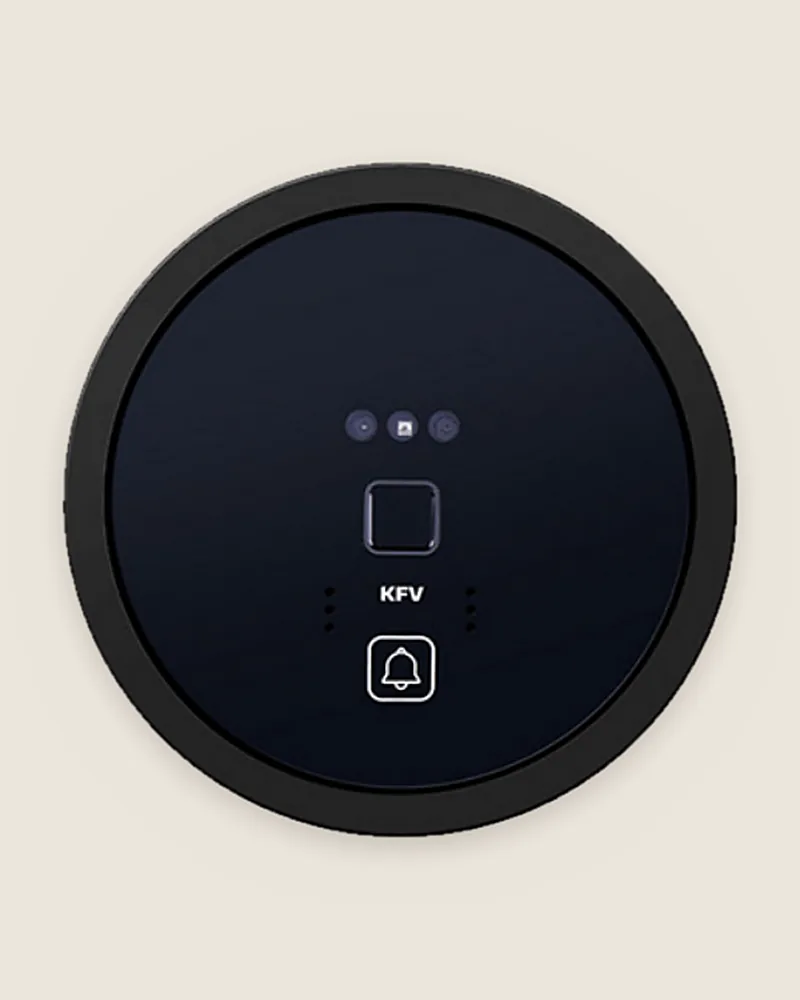

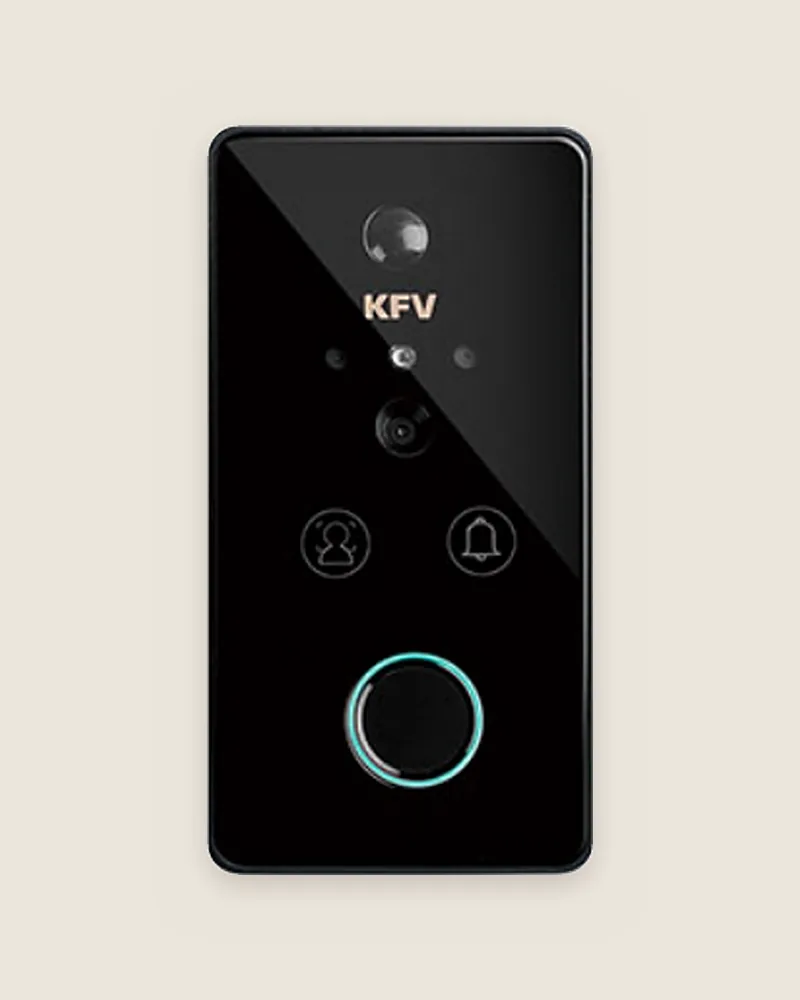

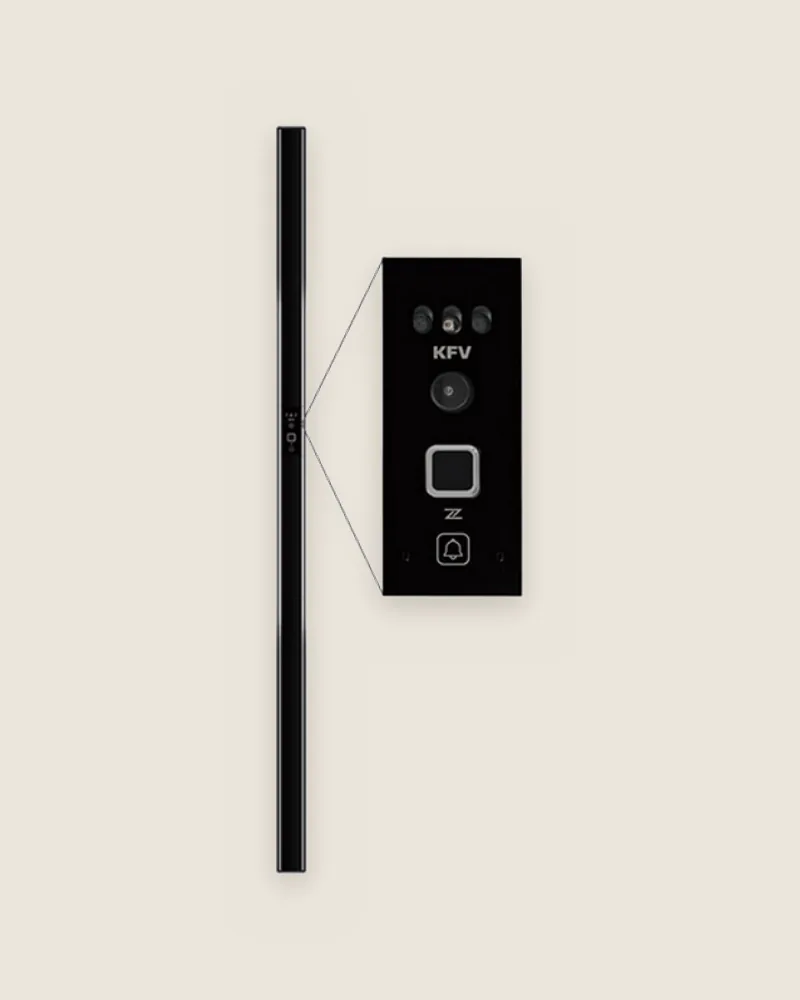

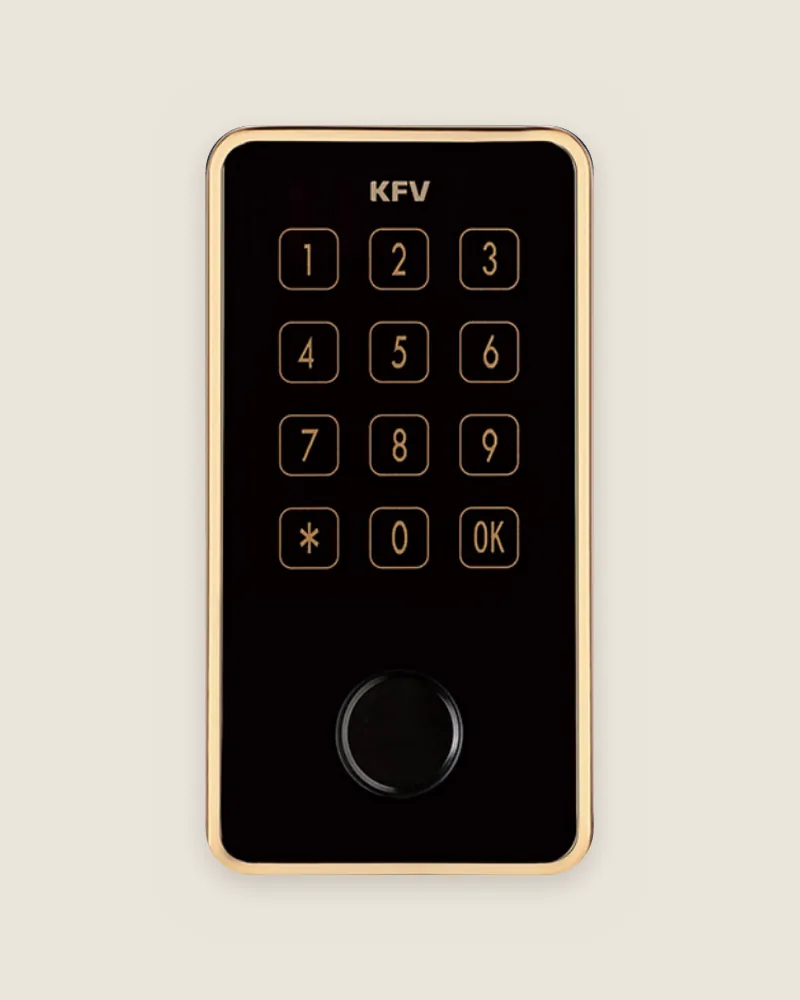

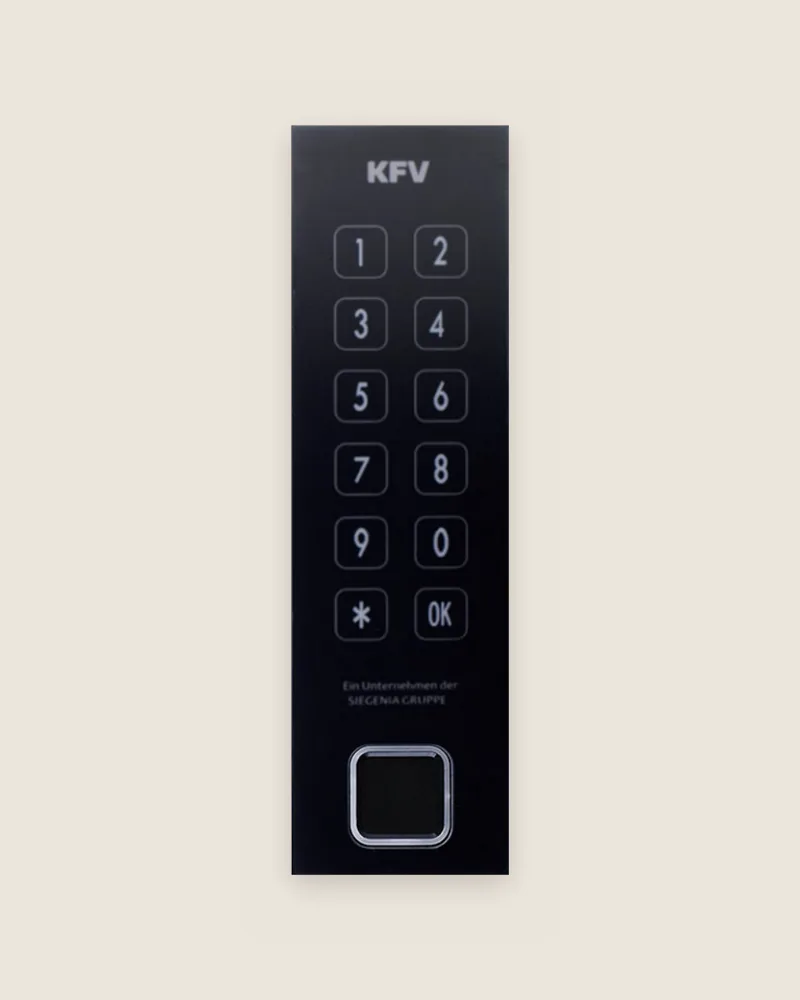

KFV smart locks.

KFV is the door-lock brand of the German SIEGENIA Group. These are the KFV smart locks we fit. Ask us about any model and we will send you its details.

Ask us which KFV locks open by the methods you picked.

G-U locking systems.

G-U (Gretsch-Unitas) has made door and window hardware in Germany since 1907, together with its sister brand BKS. Its entrance-door system locks itself every time the door closes.

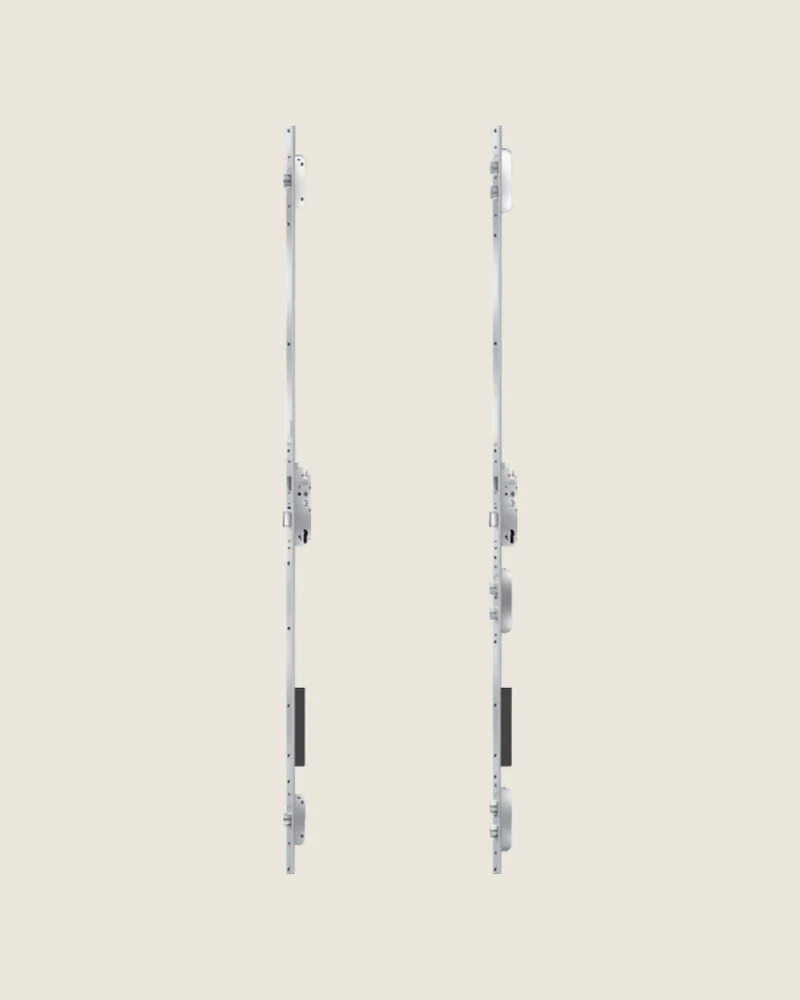

GU-SECURY Automatic

GU-SECURY Automatic

Self-locking multipoint lock

  • Key

When the door shuts, latch bolts throw 20 mm at several points and lock it without a key. With the A-opener motor it opens from a reader or intercom. Tested to RC2 and RC3 with various door systems; VdS classes A and B.

Ask about the GU-SECURY Automatic

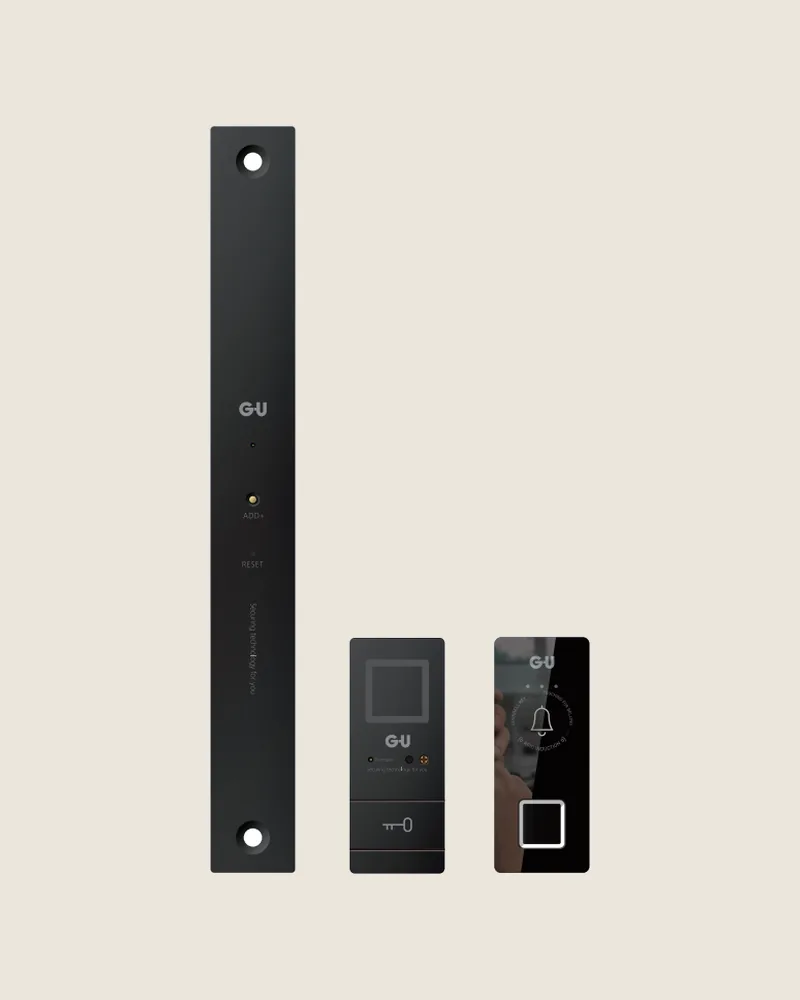

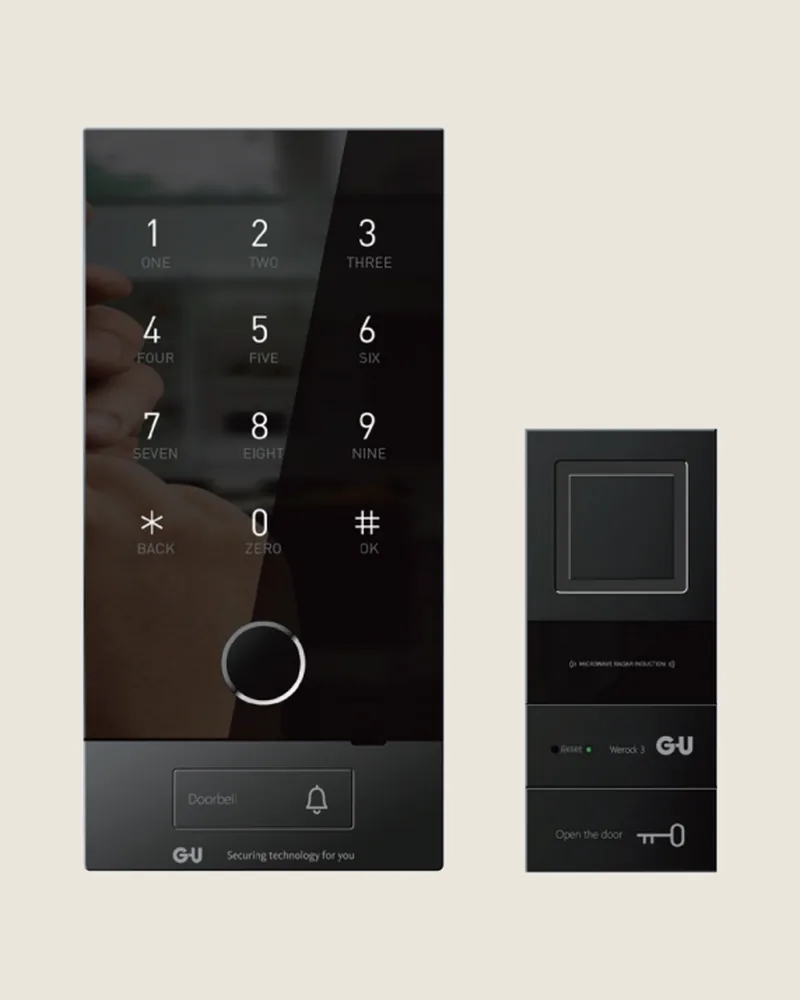

G-U Werock

G-U Werock

Keypad and fingerprint reader

  • Fingerprint
  • PIN
  • Card
  • App
  • Key

Opens by fingerprint, PIN code, RFID card or Bluetooth key, and stores up to 250 keys. Fits in the door leaf or in a pull handle.

Ask about the G-U Werock

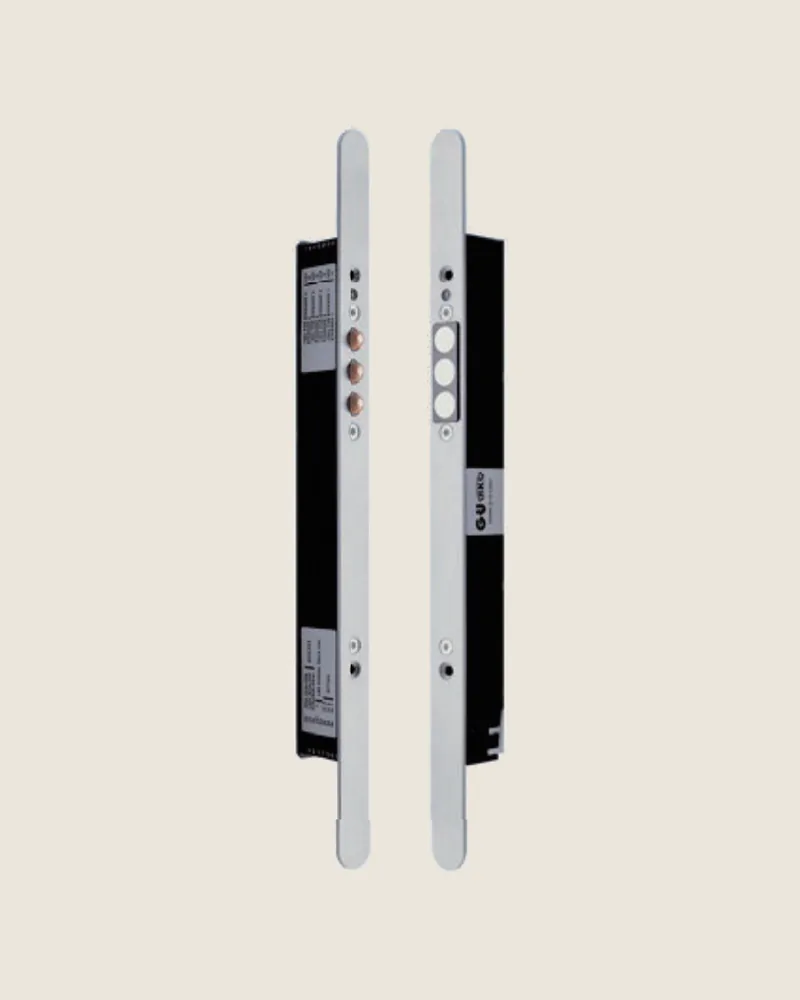

G-U SECUREconnect 200

G-U SECUREconnect 200

Power and data transfer

Carries power and data from frame to leaf without a cable across the hinge side, so the motor lock and reader in the leaf need no loop. Coded and paired against tampering.

Ask about the G-U SECUREconnect 200

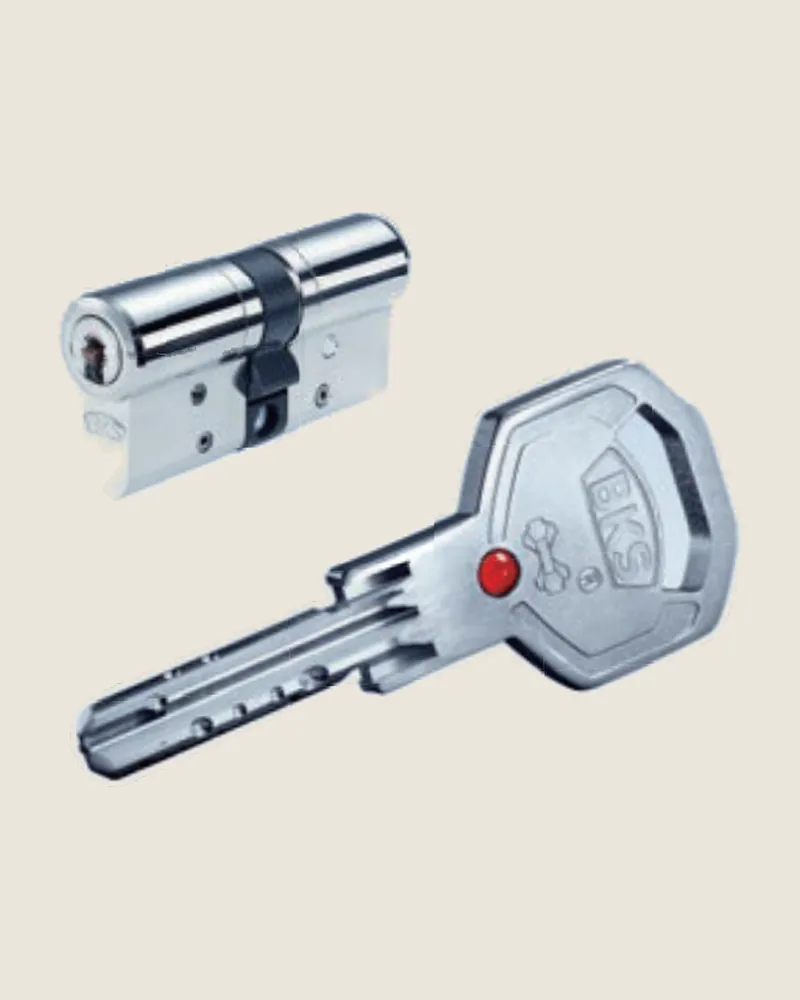

BKS janus

BKS janus

Security cylinder and keys

  • Key

VdS-certified profile cylinder with drilling, pulling and copy protection. Registered keys with a security card.

Ask about the BKS janus

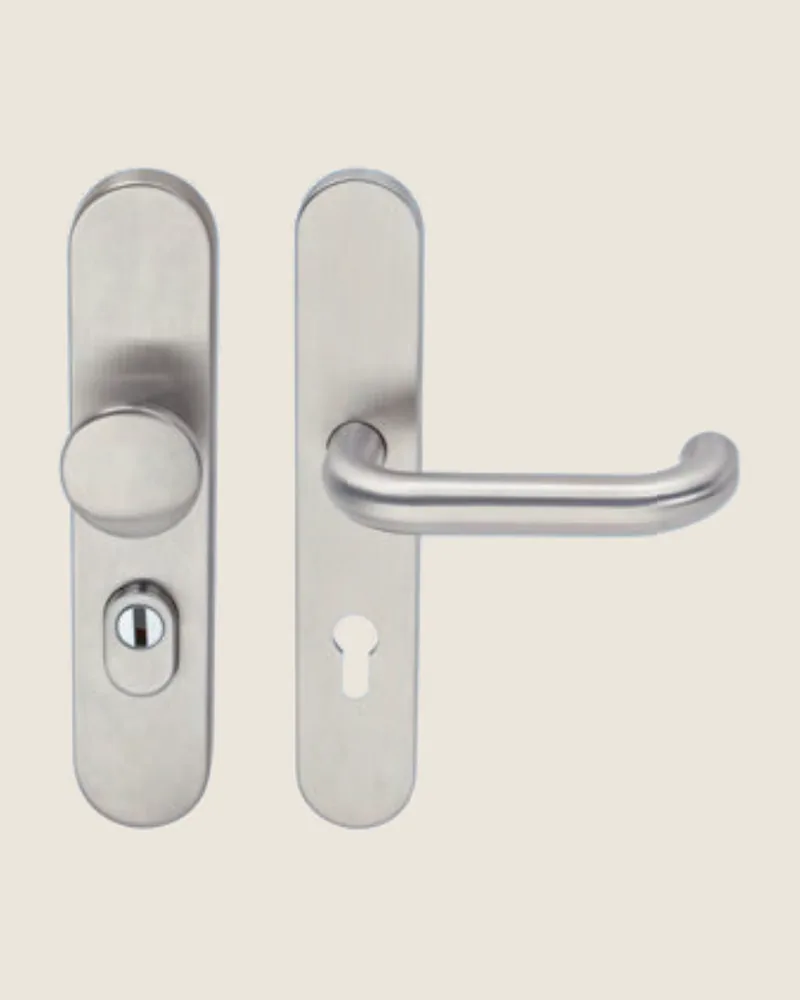

BKS RONDO ES3

BKS RONDO ES3

Security handle set

VdS-certified handle set with cylinder cover, for doors 54–69 mm thick. Seven handle and four knob designs.

Ask about the BKS RONDO ES3

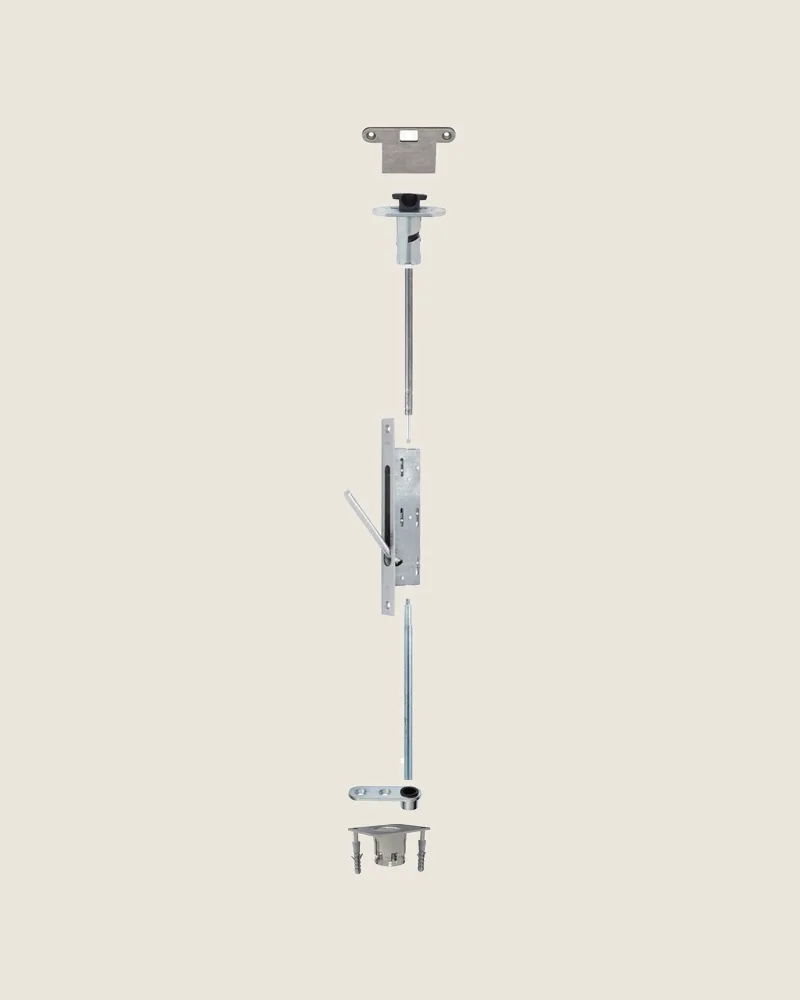

G-U flush bolt set

G-U flush bolt set

For the second leaf of a double door

Top and bottom bolts lock by themselves when the door closes, and release with a lever on the edge of the leaf.

Ask about the G-U flush bolt set

None of the G-U readers open by all of the methods you picked.

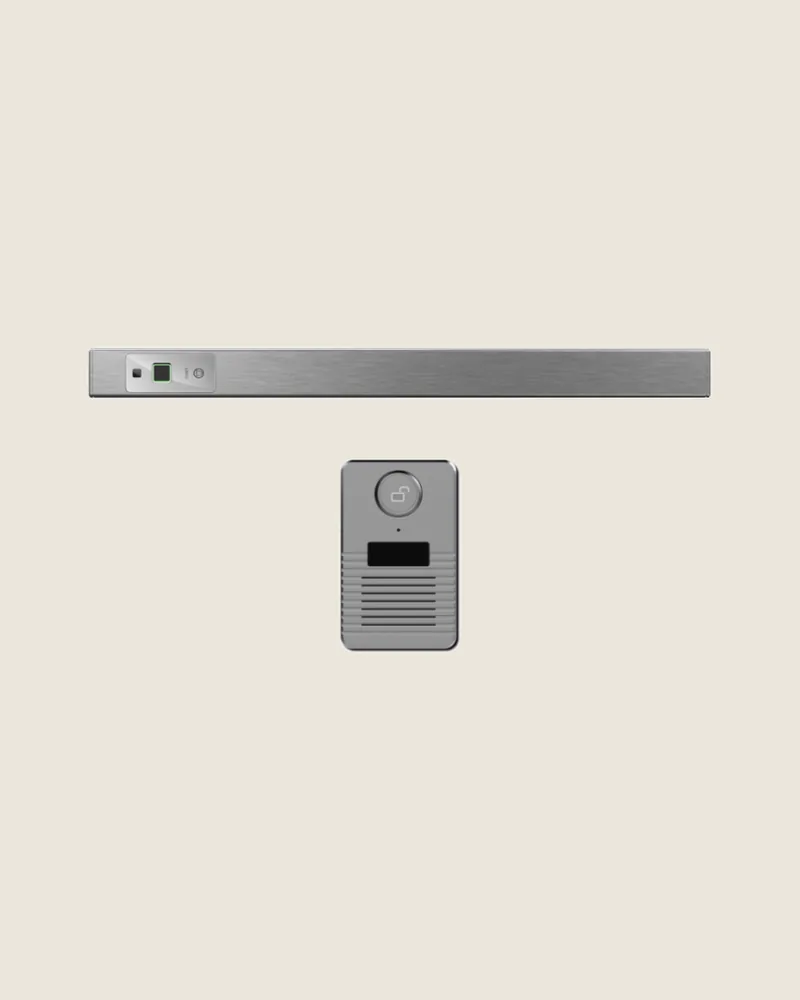

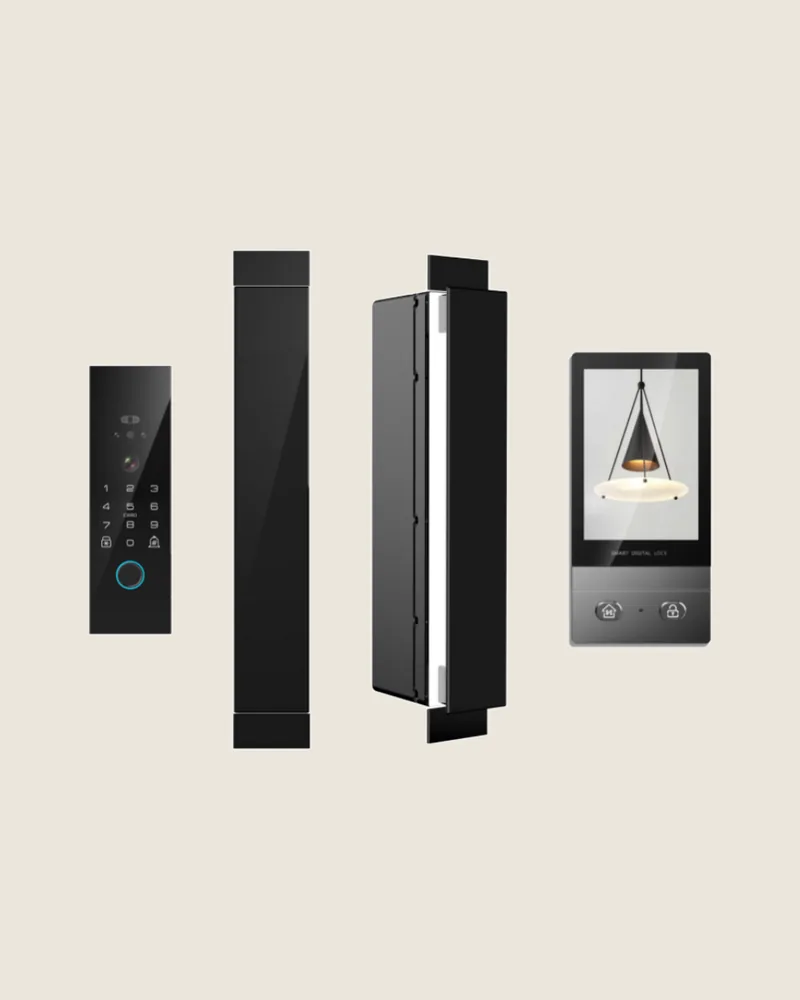

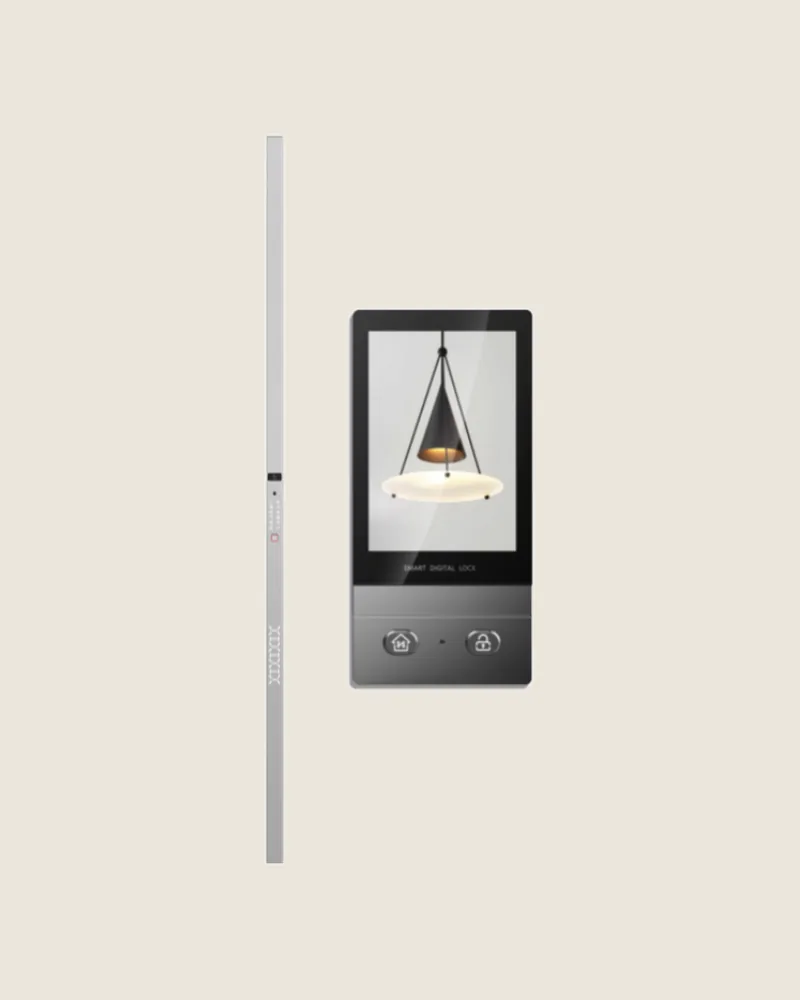

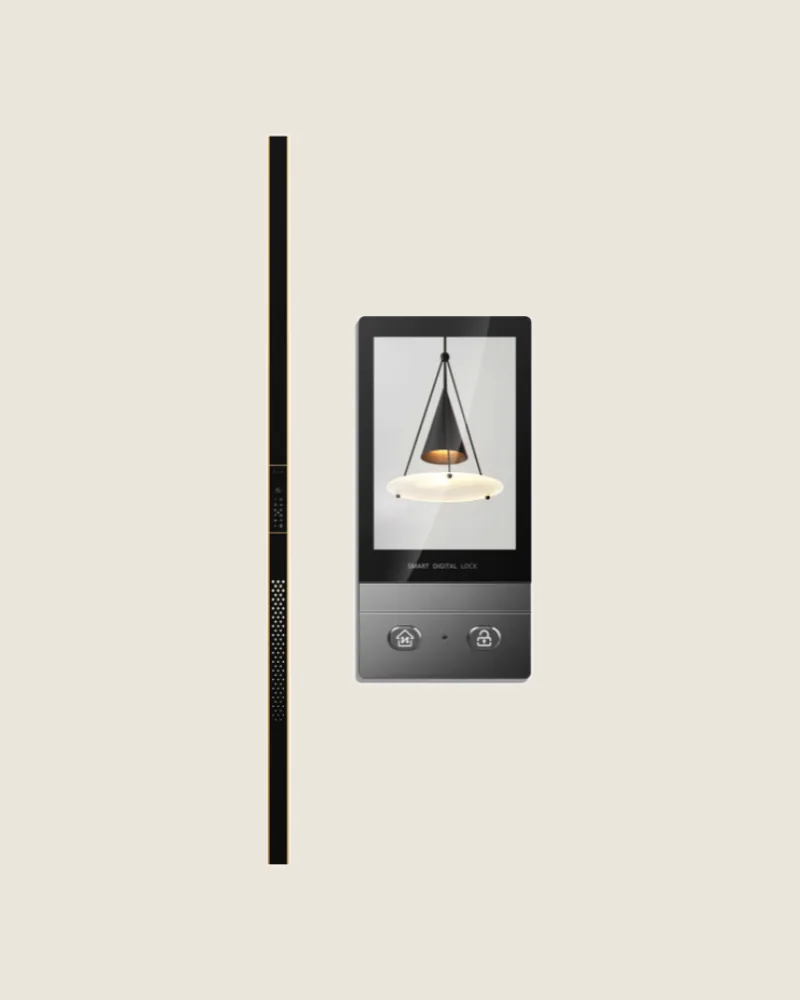

Wintech smart locks.

Wintech Smart (Shenzhen Yuntian Intelligent Terminal Co.) builds the reader, handle and lock body into the door itself rather than onto it. Every model keeps a mechanical key.

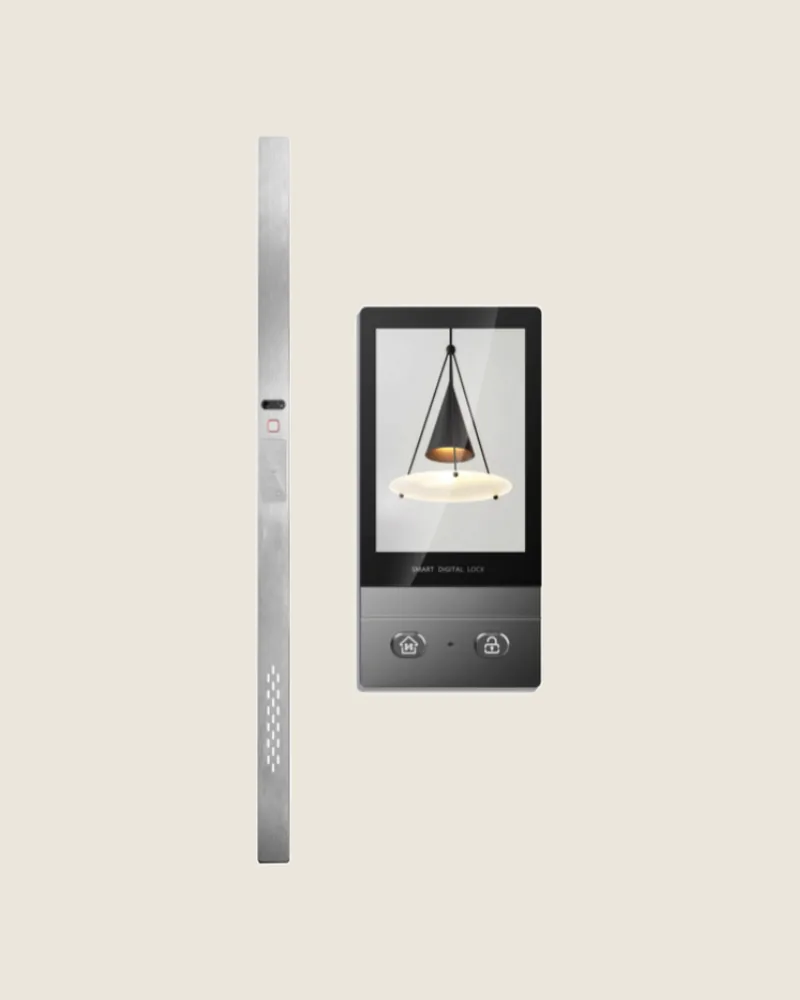

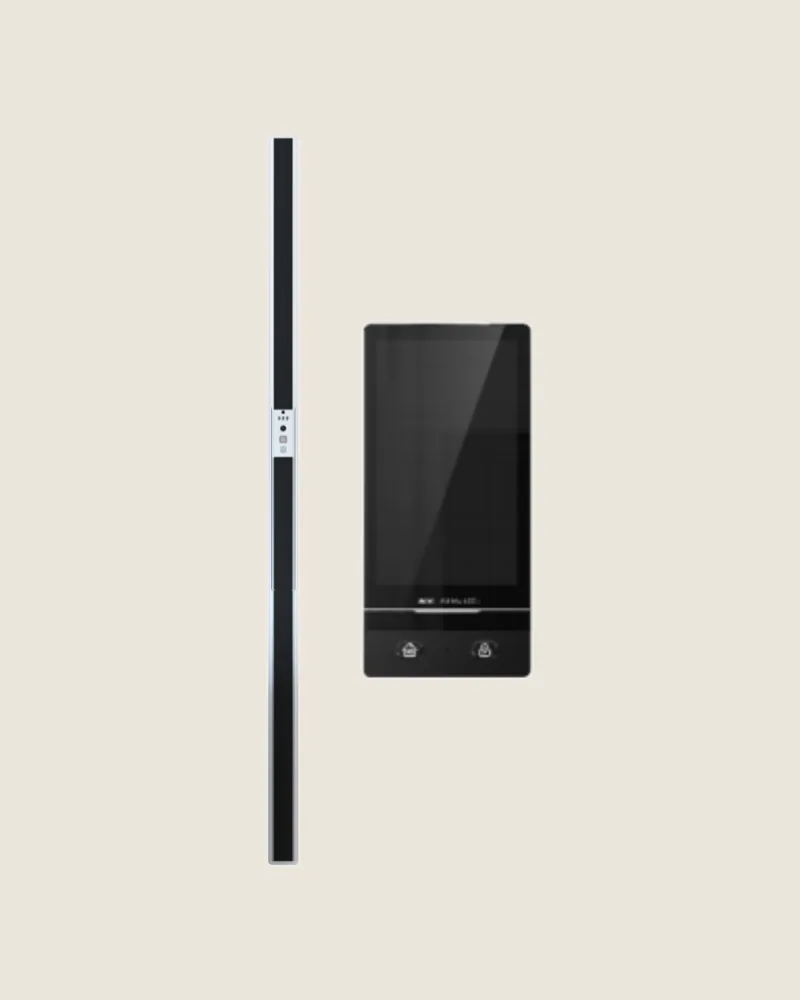

Telescopic handle

The handle slides out of the door face when you need it and sits flush when you don't.

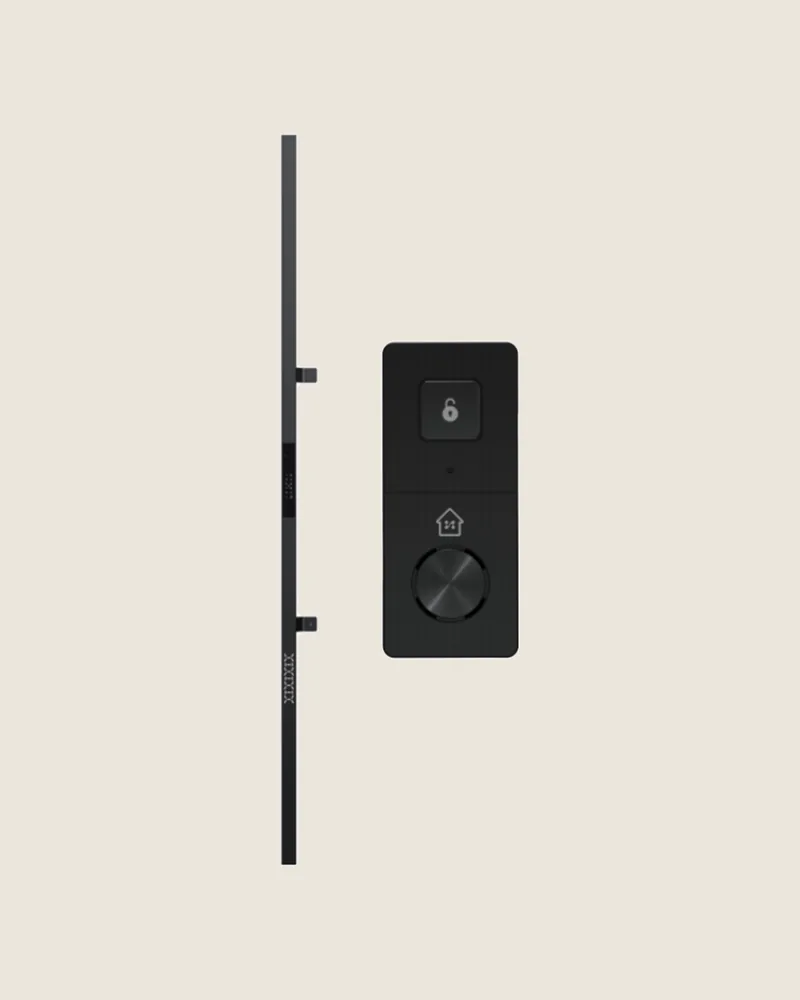

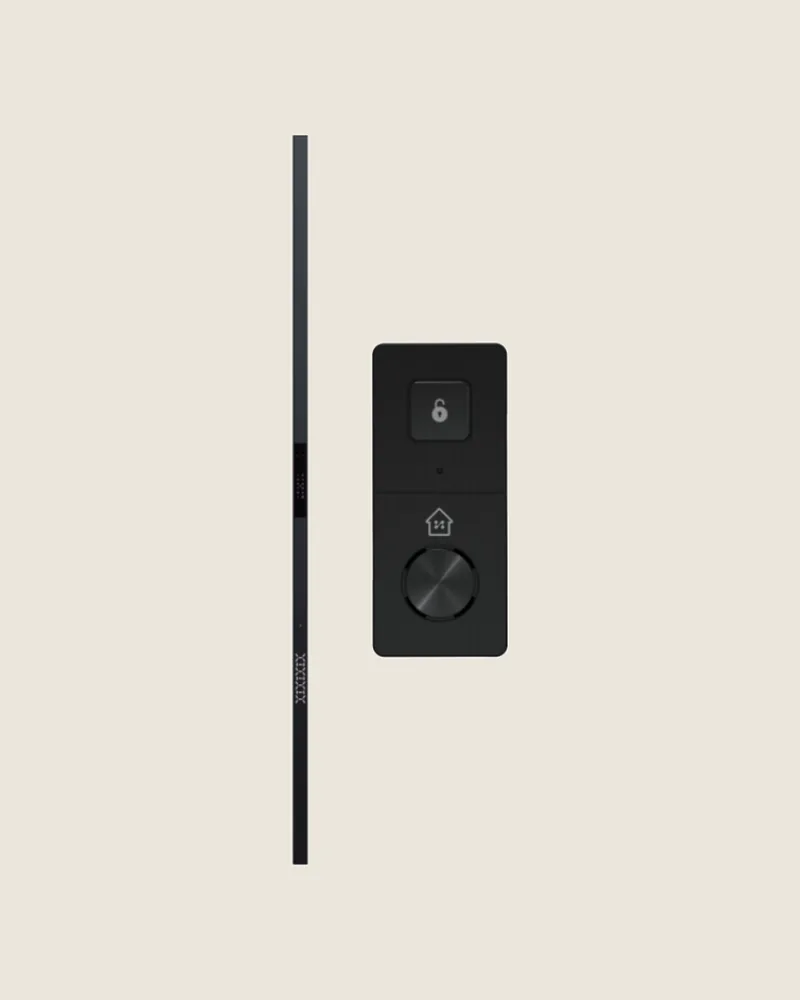

Telescopic module

A slim module set into the door face, in a colour matched to your door.

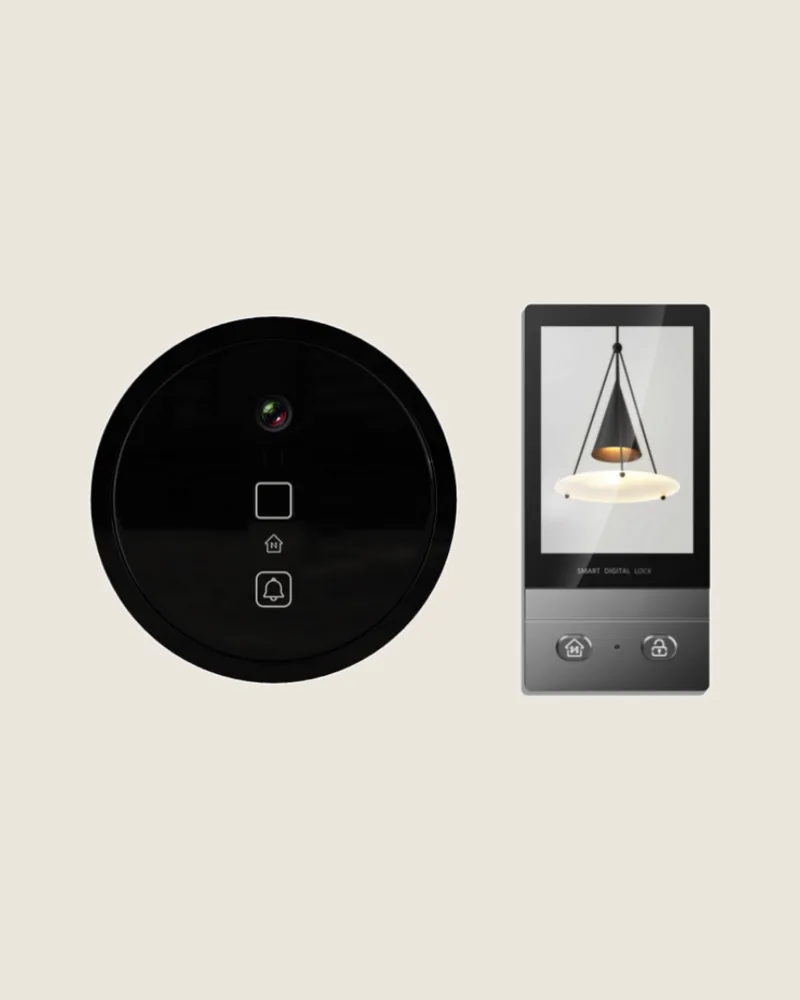

Wireless

The outdoor reader sits in the frame or on the wall, and talks to the lock without a cable.

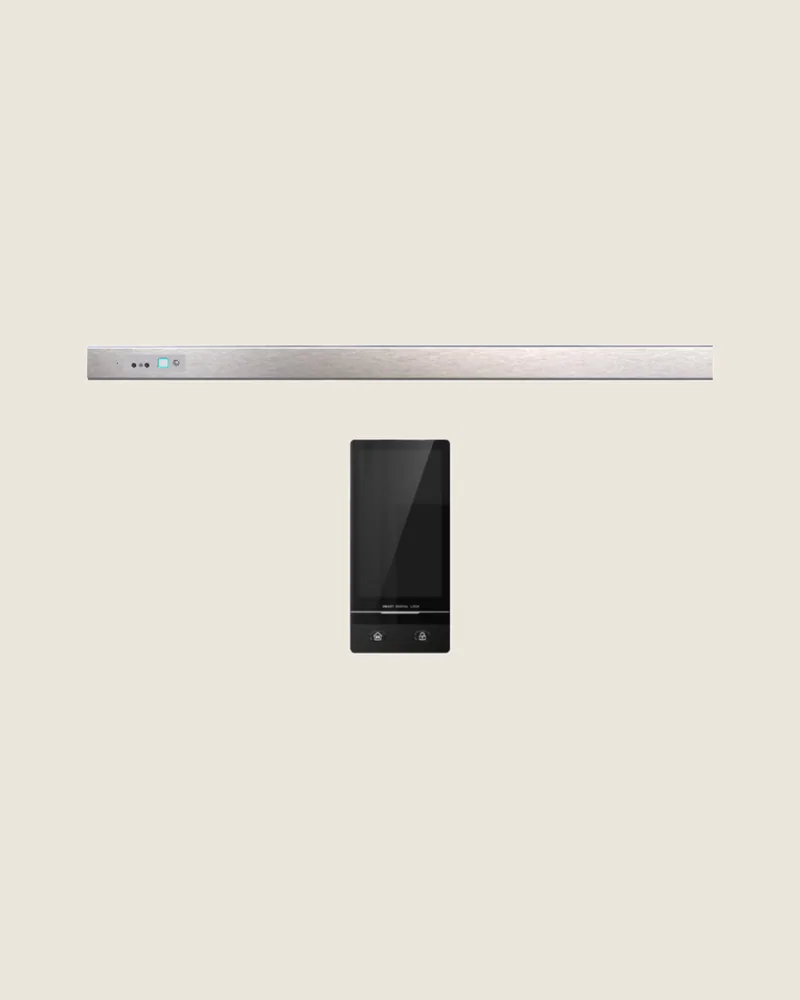

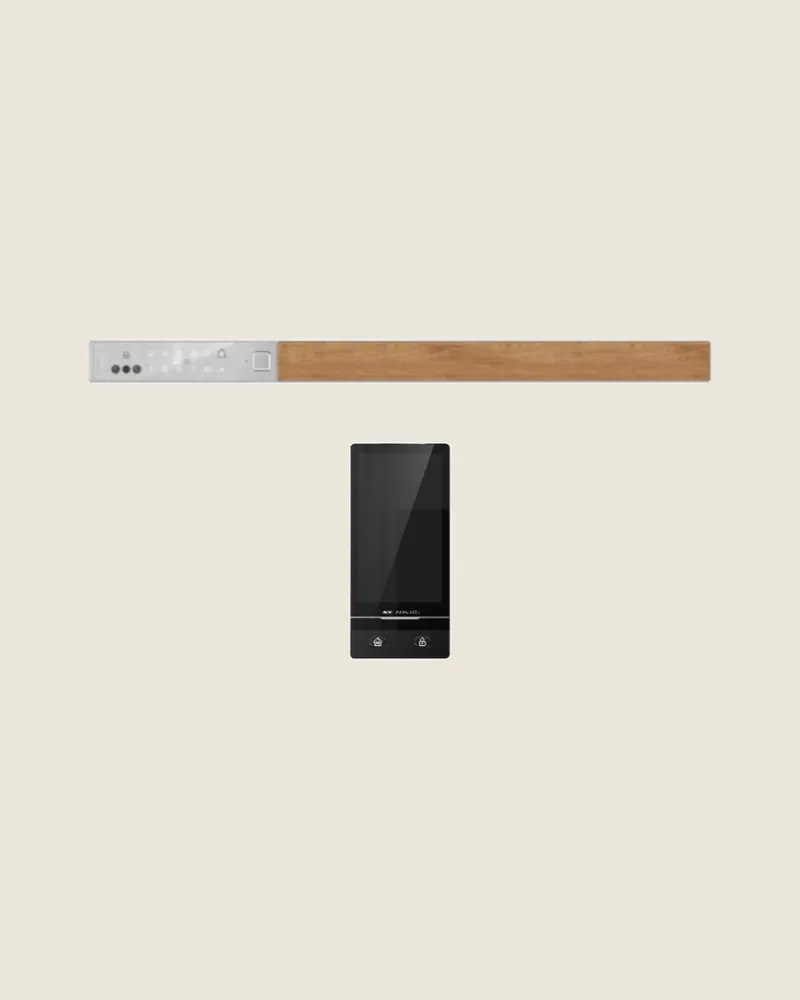

Pull handle

The reader is built into an aluminium pull handle. Length and logo light can be customised.

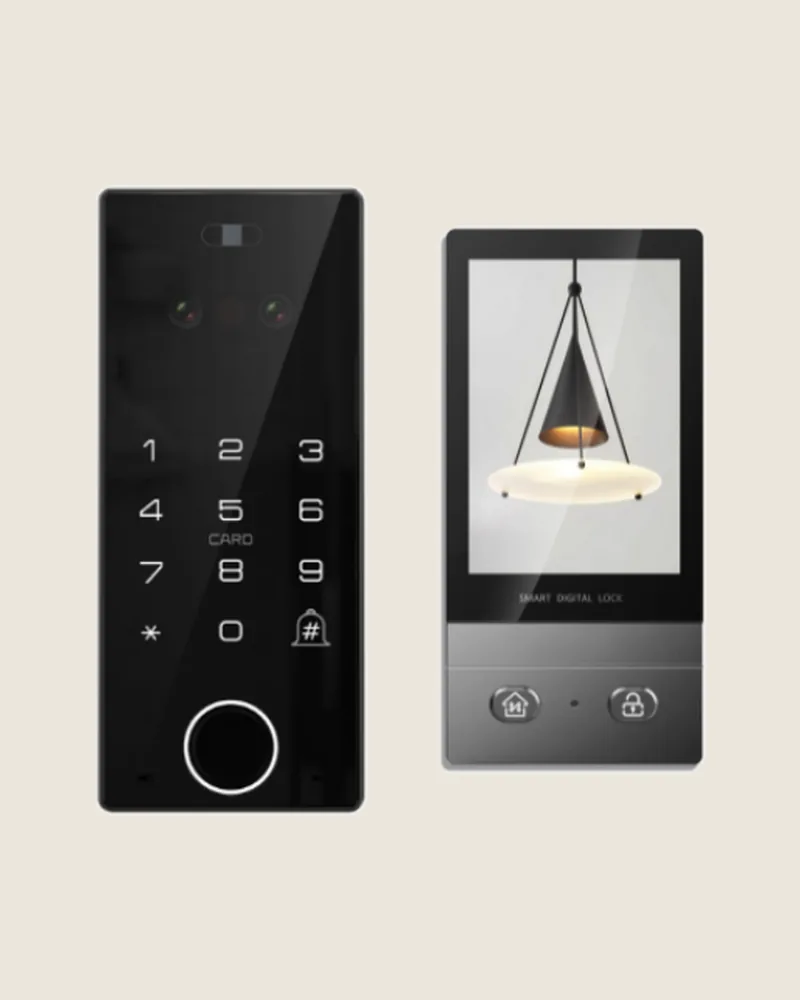

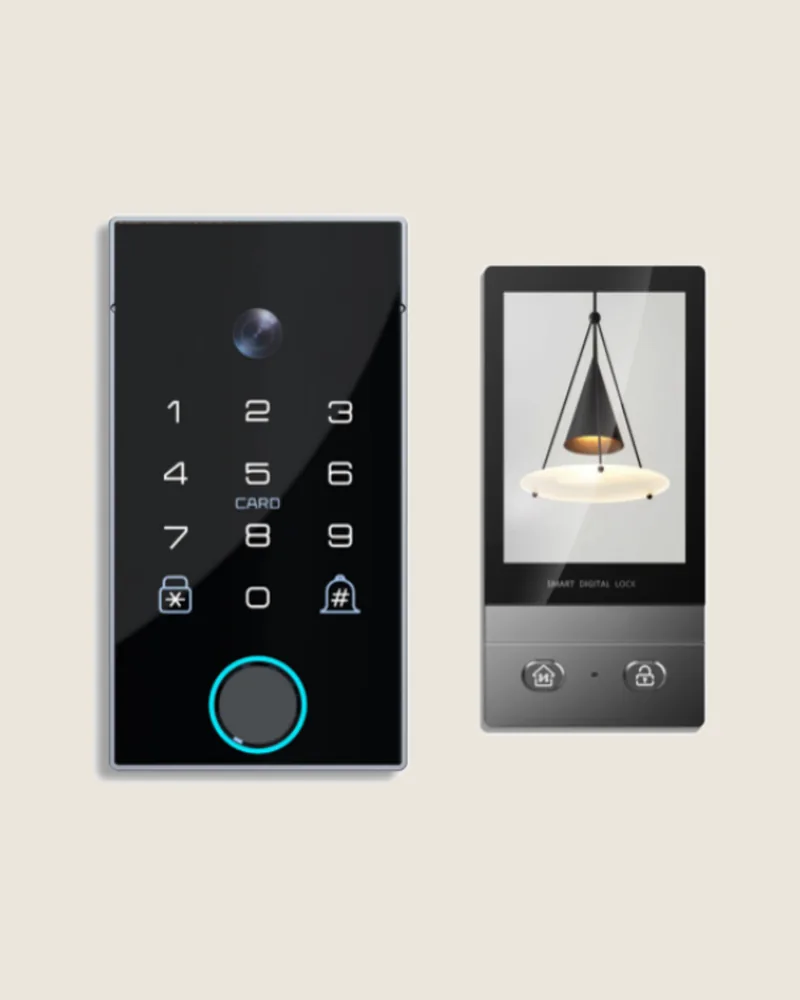

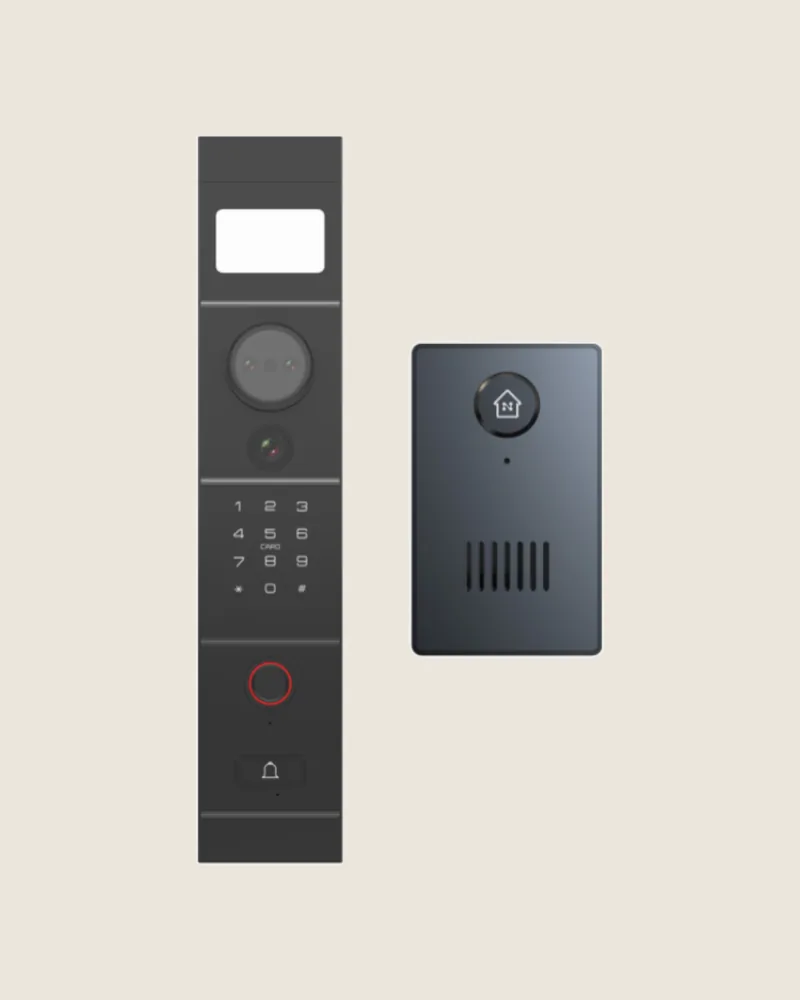

Standard panel

An outdoor panel on the door with a matching indoor panel.

Glass door

For glass doors, built to stand up to strong sun and rain.

None of the Wintech locks open by all of the methods you picked.

Wintech lock bodies

FeatureA seriesB series
Faceplate24 × 6 × 2400 mm U-shaped, 304 stainless steel
Backset65 or 35 mm, 92 mm centre distance
Door thickness50–120 mm
LockingDeadbolt, latch and two hook bolts. Locks itself through a magnetic door sensor. Emergency release handle inside.
FinishElectroplatedSpray-coated
MotorStepper motor, lead-screw driveCoreless geared motor
Power12 V mains supply12 V mains supply or 8.4 V battery

Tell us which lock.

Send the model with your door size. We confirm the lock body, cylinder and wiring in your drawing before production.
